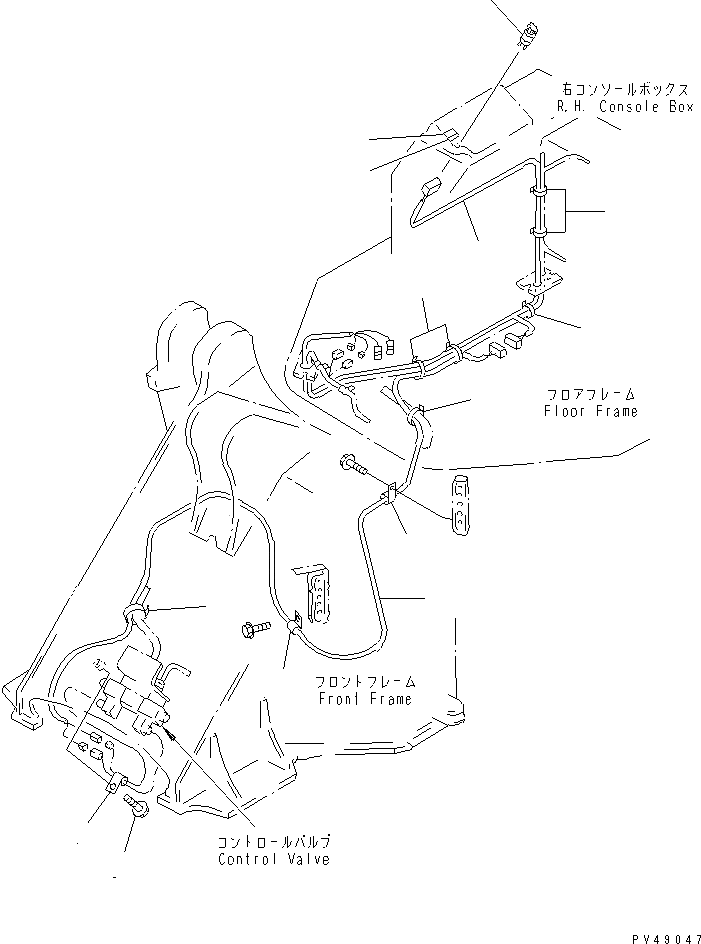

ELECTRICAL SYSTEM (MULTI COUPLER LINE)(#50001-)
1
2
3
3
4
5
6
7
7
7
7
7
8
9
For full view, you need register
Запчасти группы :
| Поз. | Оригинальный номер | Qty | Название | Комментарий |
|---|---|---|---|---|
| 1. | 419-879-2180 | [1] | WIRING HARNESS Komatsu China | |
| ["SN: 50001-UP"] | ||||
| 2. | 423-879-2190 | [1] | WIRING HARNESS Komatsu China | |
| ["SN: 50001-UP"] | ||||
| 3. | 144-874-6970 | [2] | CLIP Komatsu | 0.03 кг. |
| ["SN: 50001-UP"] | ||||
| 4. | 08036-10814 | [1] | CLIP Komatsu | 0.01 кг. |
| ["SN: 50001-UP"] | ||||
| 5. | 01435-01016 | [1] | BOLT Komatsu | 0.021 кг. |
| ["SN: 50001-UP"] | ||||
| 6. | 417-879-2230 | [1] | SWITCH,MULTI COUPLER Komatsu | 0.3 кг. |
| ["SN: 50001-UP"] | ||||
| 7. | 08034-20536 | [7] | BAND Komatsu | 0.003 кг. |
| ["SN: 50001-UP"] | ||||
| 8. | 416-879-1610 | [1] | PLATE¤ OPERATING,MULTI COUPLER Komatsu China | |
| ["SN: 50001-UP"] | ||||
| 9. | 417-879-2280 | [1] | PLATE¤ NAME,SWITCH Komatsu China | |
| ["SN: 50001-UP"] | ||||
